High Sierra's
4-Way Reflection Combo Shower Kit Installation
Optional Visual Demonstration:
This video illustrates the installation process described below. All instructions and important product information are provided in the accessible text on this page.

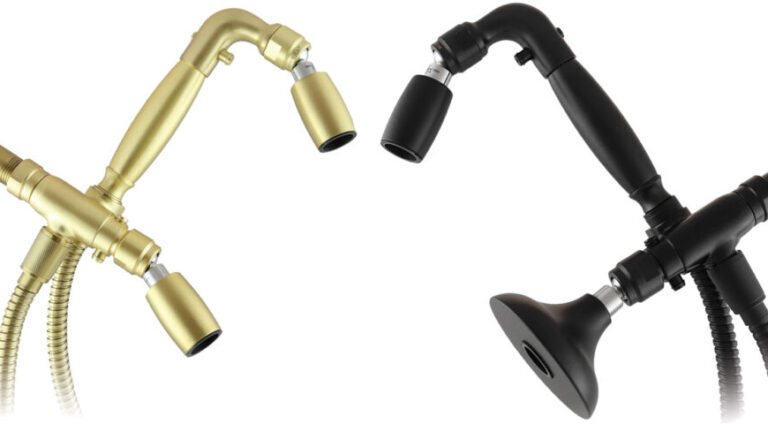

High Sierra 4-Way Combination Shower Heads
Enjoy your new High Sierra® 4-Way Kit with Classic™ showerhead!
The ultimate shower experience is here! Our NEW Combo Shower Head Kit allows user to choose between using a fixed shower head or a handheld shower head. Each shower head comes equipped with our popular push-button trickle valve that enables user to easily control which shower head to use.
Patented Full Coverage Spray (FCS™) technology delivers the perfect shower experience!
- Conveniently Choose Between Using A Fixed or Handheld Shower Head
- Full, Invigorating Spray of Large, Rain-Like Drops
- Never Clogs*
- Solid Metal Construction - Built to Last!
- Please note: to comply with US plumbing codes, each shower head comes equipped with an on/off “trickle” valve. When in the off position, the trickle valves will flow a minimal 0.05 gpm to prevent scalding.
- U.S. Patent #7,185,830
- *Sand or finer particles will pass through
Easy 4-Step Installation
- No teflon tape required.

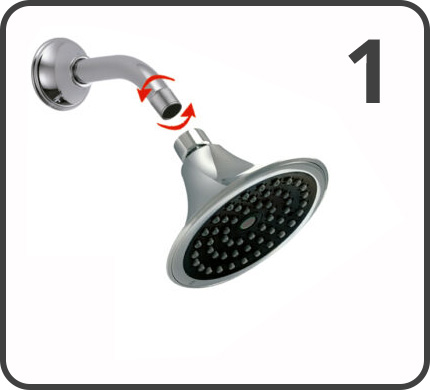

Remove old shower head by turning it counter-clockwise (wrench may be required).

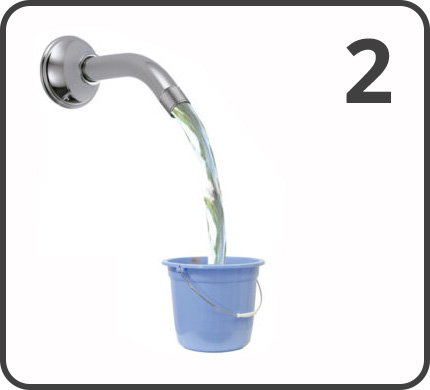

Run water through the shower arm for 5-10 seconds to clear any foreign debris that may be in the pipe.

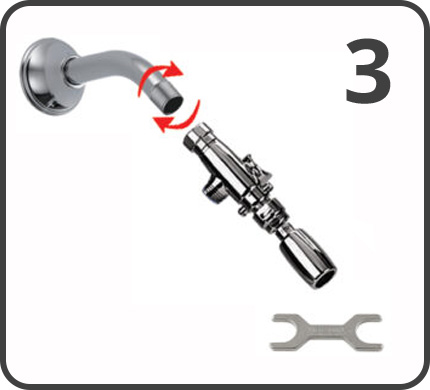

It is very important that the combo holder be oriented in the upright position and mounted tightly to the shower arm. This is to prevent the holder from moving when the handheld unit is hung up. Start threading holder nut by hand (turning clockwise) and finish tightening by using our High Sierra wrench (A-side) *If after tightening you notice a leak between the holder and the holder nut, remove the holder from the shower arm and add the included extra rubber washer to the inside of the holder nut. Re-install per above instructions.

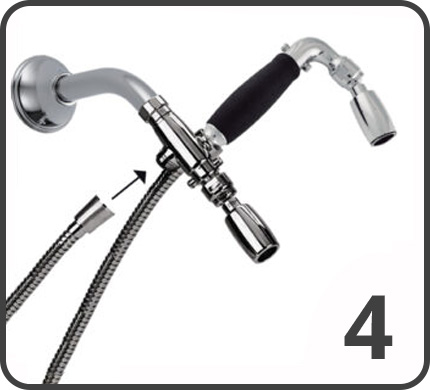

Thread hose fitting onto combo holder, by hand, turning it clockwise until hose fitting is tight.
