High Sierra's
Wall Mounted Holder - Installation Video (Using Drill)

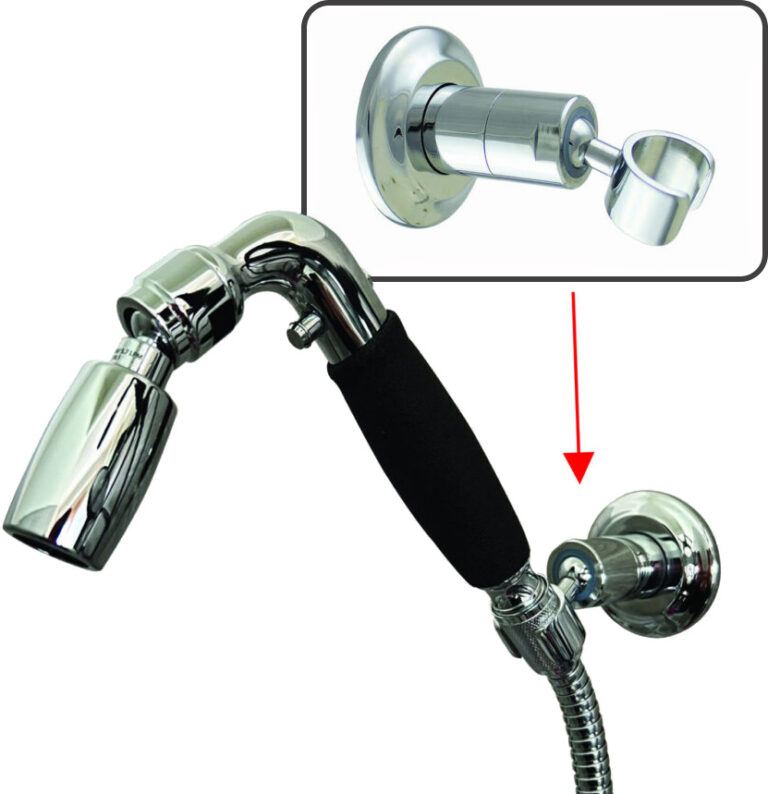

Wall Mounted Handheld Shower holder
- Durable, ALL-METAL Construction
- Securely Holds Most Handheld Units in Place
- Made with High-Quality Brass... Built to Last!
- Ball-Joint swivel for variable angle adjustment.
- Wall holder is perfect for combination showerheads

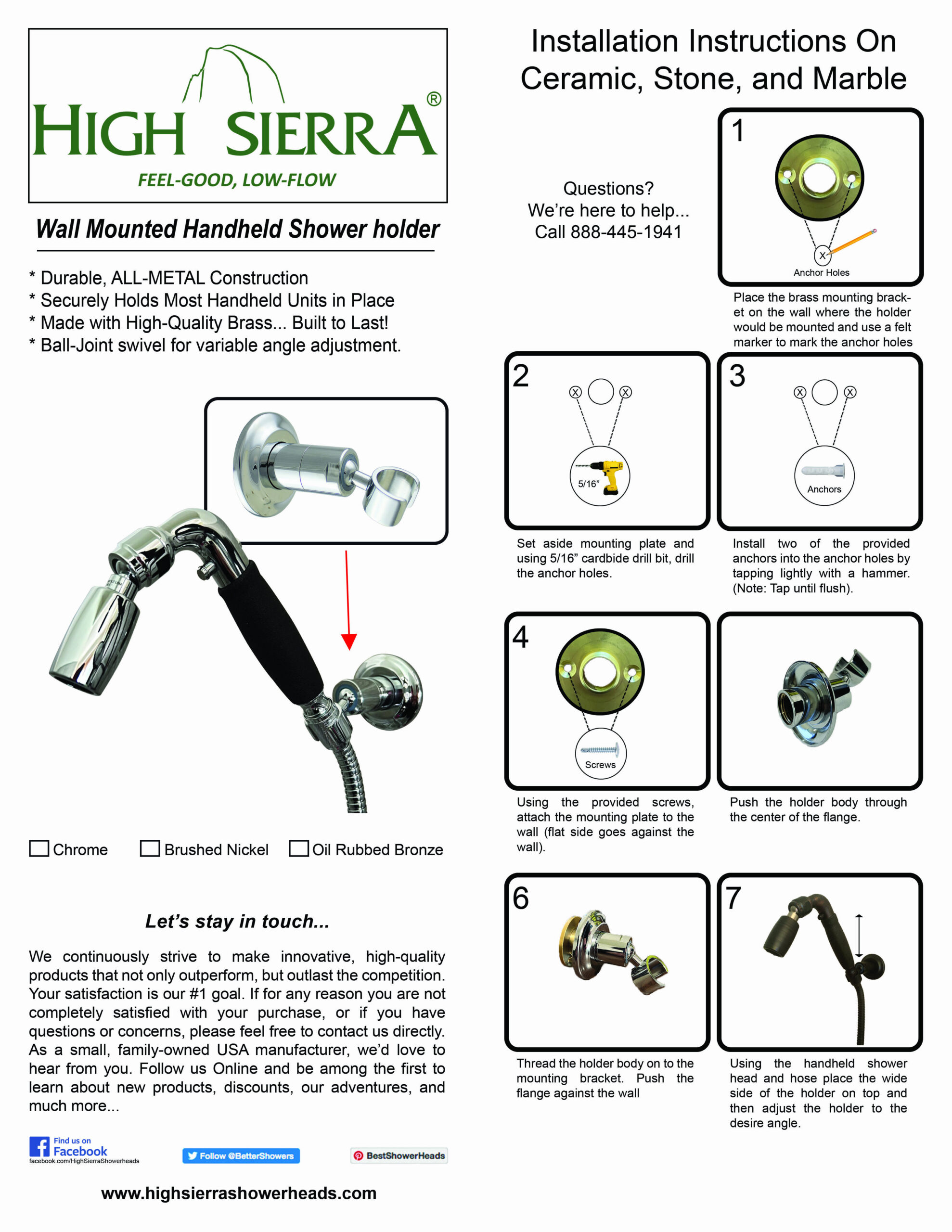

Installation Instructions on Ceramic, Stone and Marble

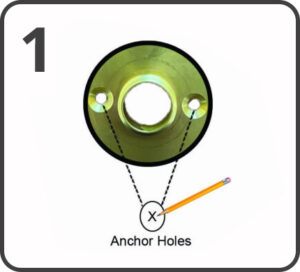

Place the brass mounting bracket on the wall where the holder would be mounted and use a felt marker to mark the anchor holes

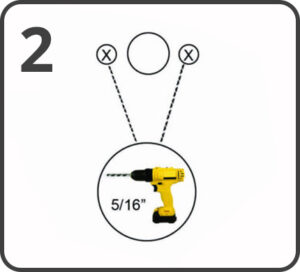

Set aside mounting plate and using 5/16" cardbide drill bit, drill the anchor holes.

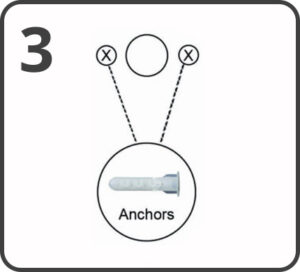

Install two of the provided anchors into the anchor holes by tapping lightly with a hammer. (Note: Tap until flush).

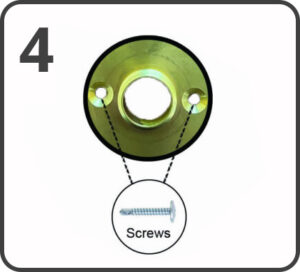

Using the provided screws, attach the mounting plate to the wall (flat side goes against the wall).

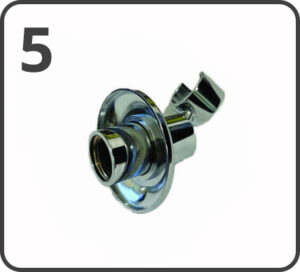

Push the holder body through the center of the flange.

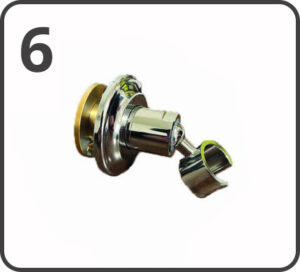

Thread the holder body on to the mounting bracket. Push the flange against the wall

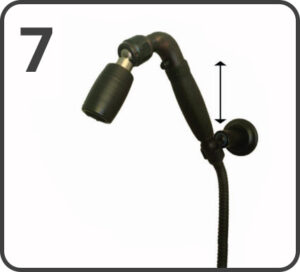

Using the handheld shower head and hose place the wide side of the holder on top and then adjust the holder to the desire angle.

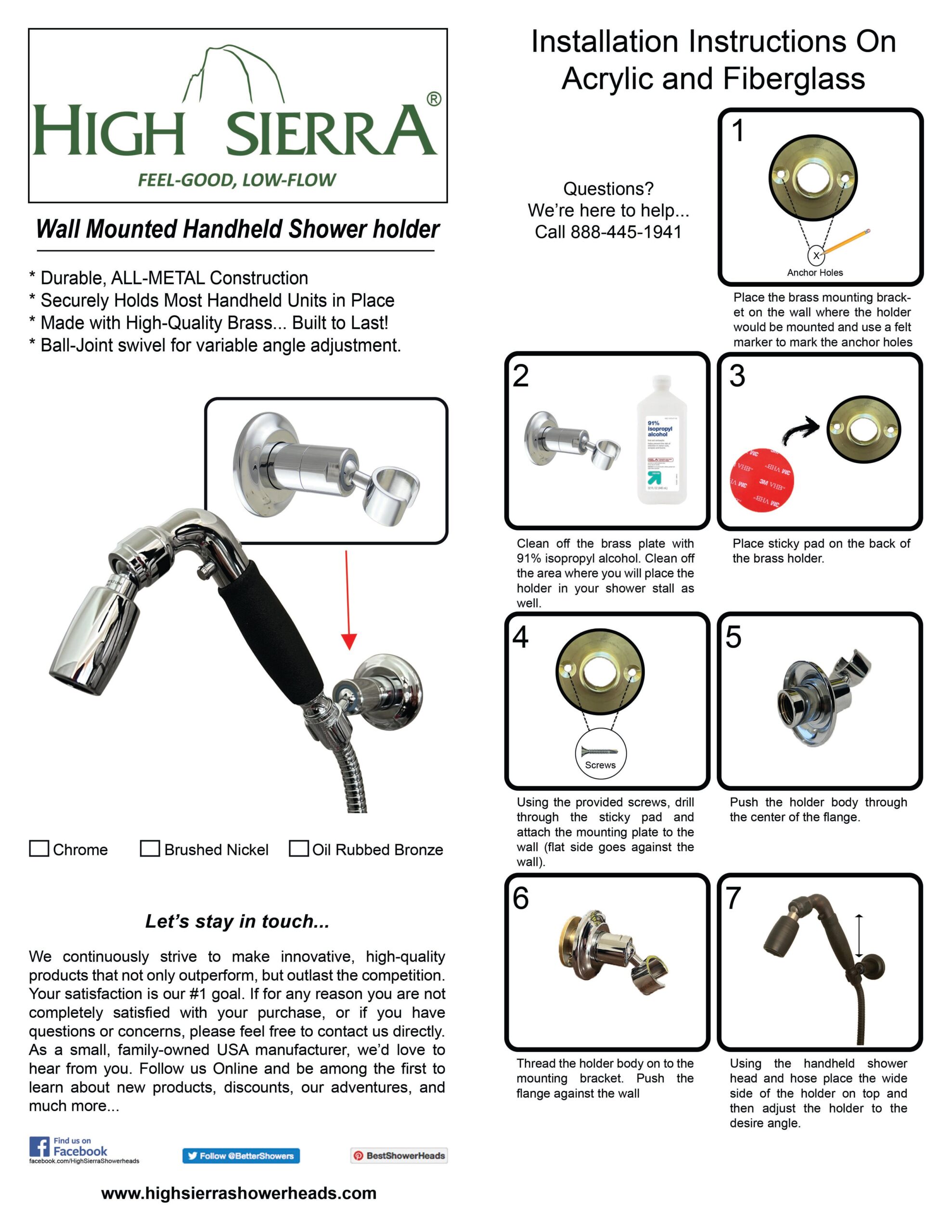

Installation Instructions on Acrylic and Fiberglass
Place the brass mounting bracket on the wall where the holder would be mounted and use a felt marker to mark the anchor holes

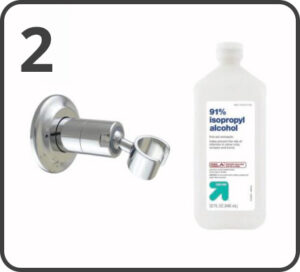

Clean off the brass plate with 91% isopropyl alcohol. Clean off the area where you will place the holder in your shower stall as well.

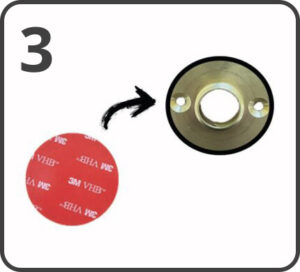

Place sticky pad on the back of the brass holder.
Using the provided screws, drill through the sticky pad and attach the mounting plate to the wall (flat side goes against the wall).
Push the holder body through the center of the flange.
Thread the holder body on to the mounting bracket. Push the flange against the wall
Using the handheld shower head and hose place the wide side of the holder on top and then adjust the holder to the desire angle.
